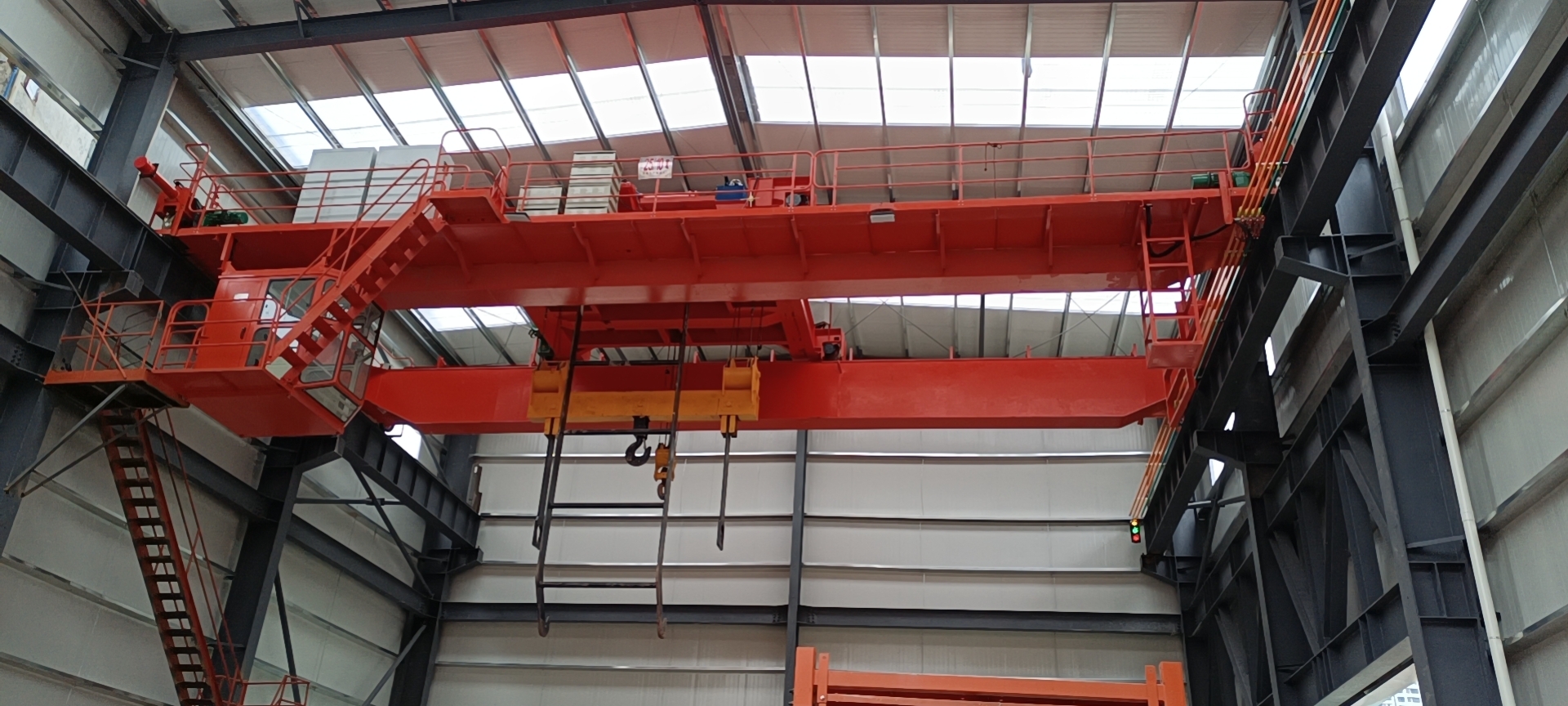

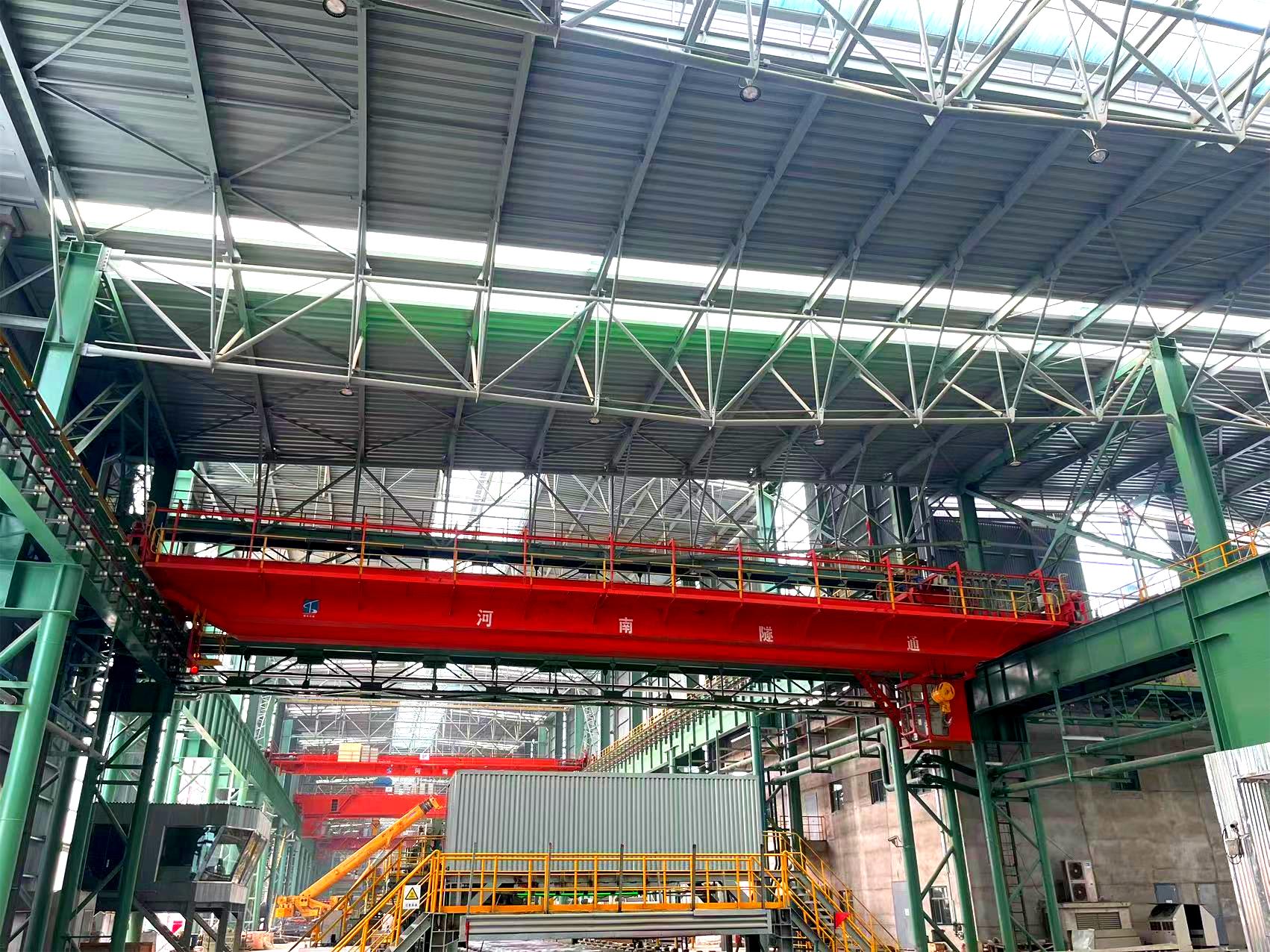

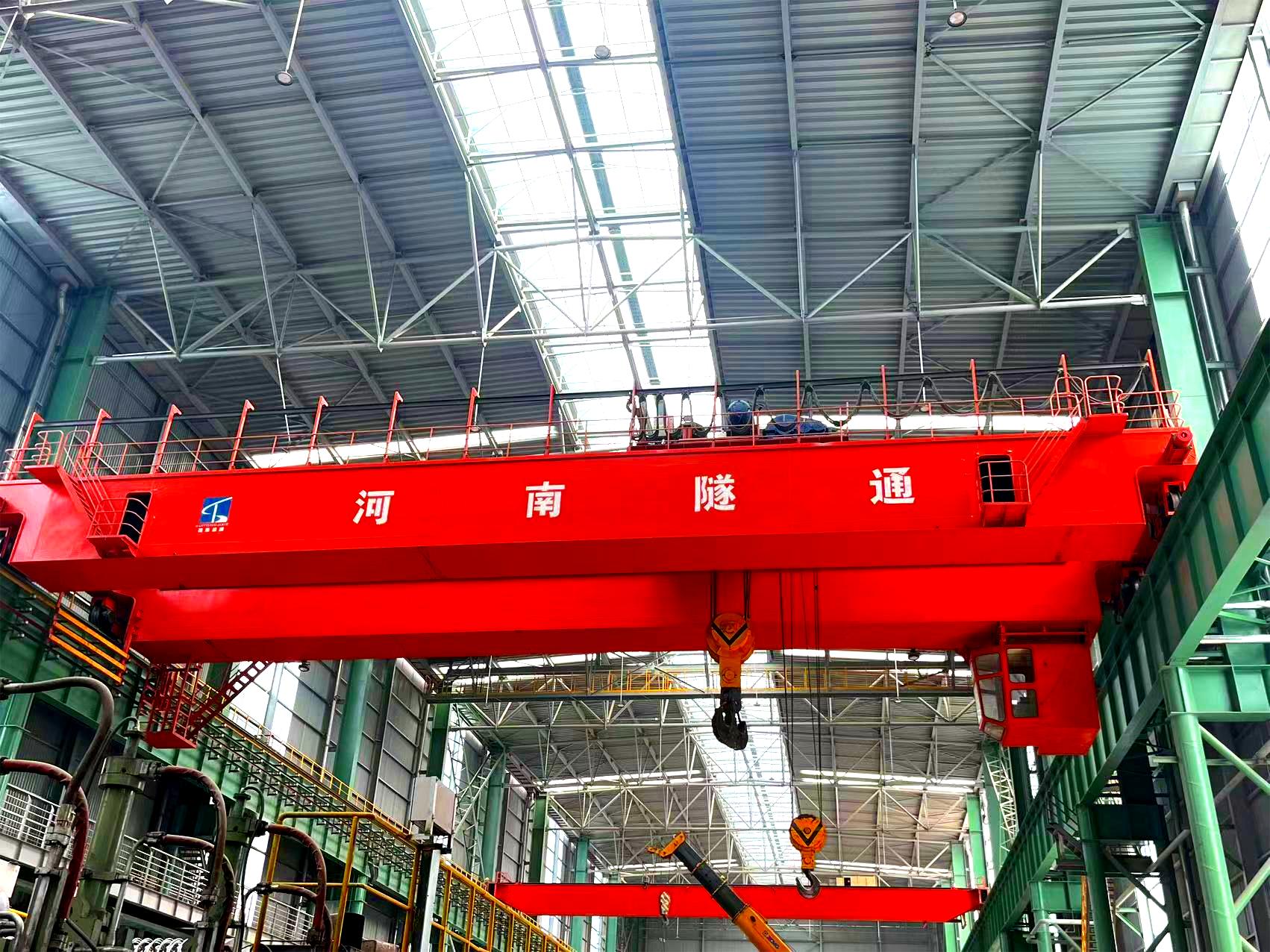

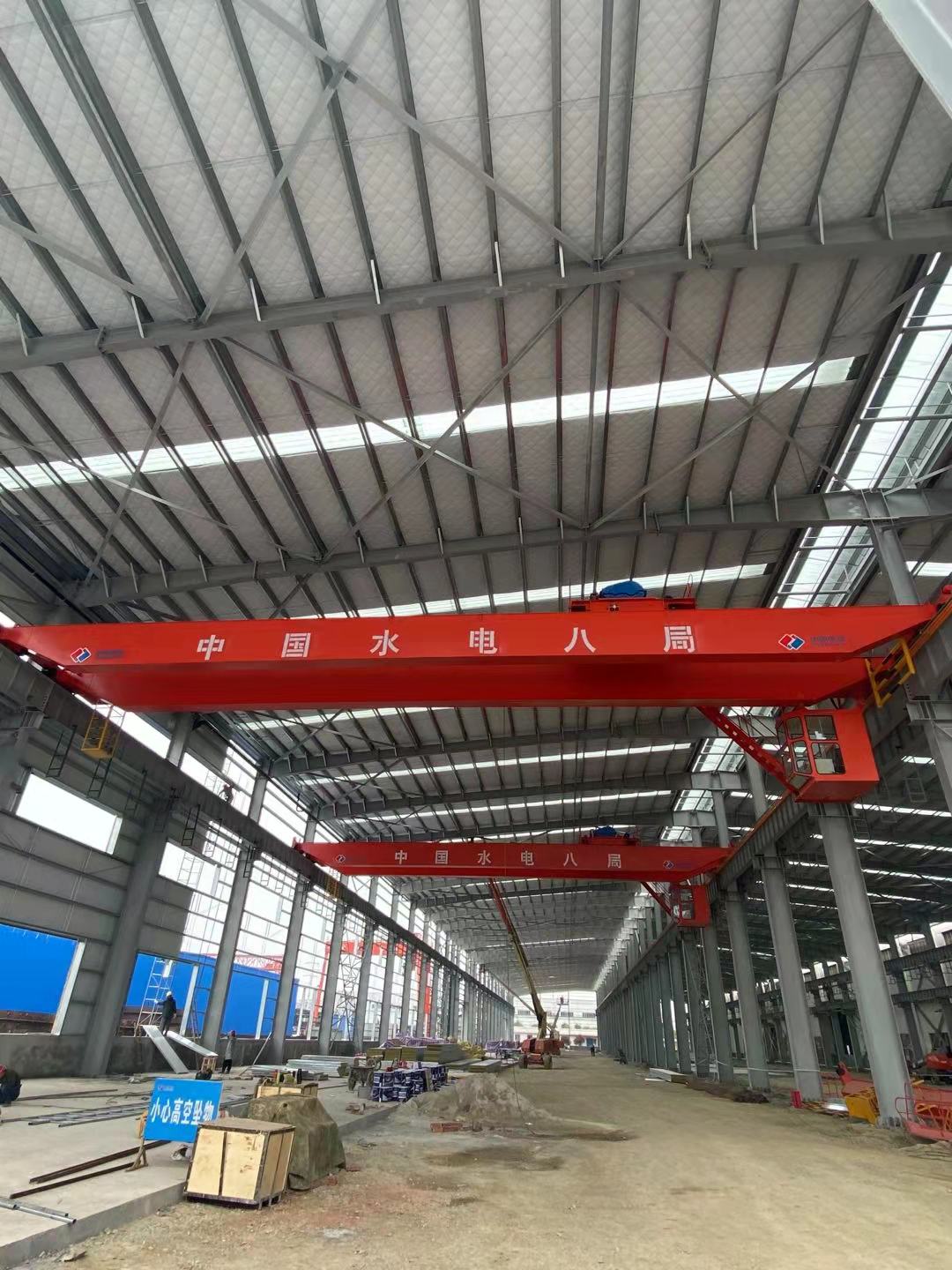

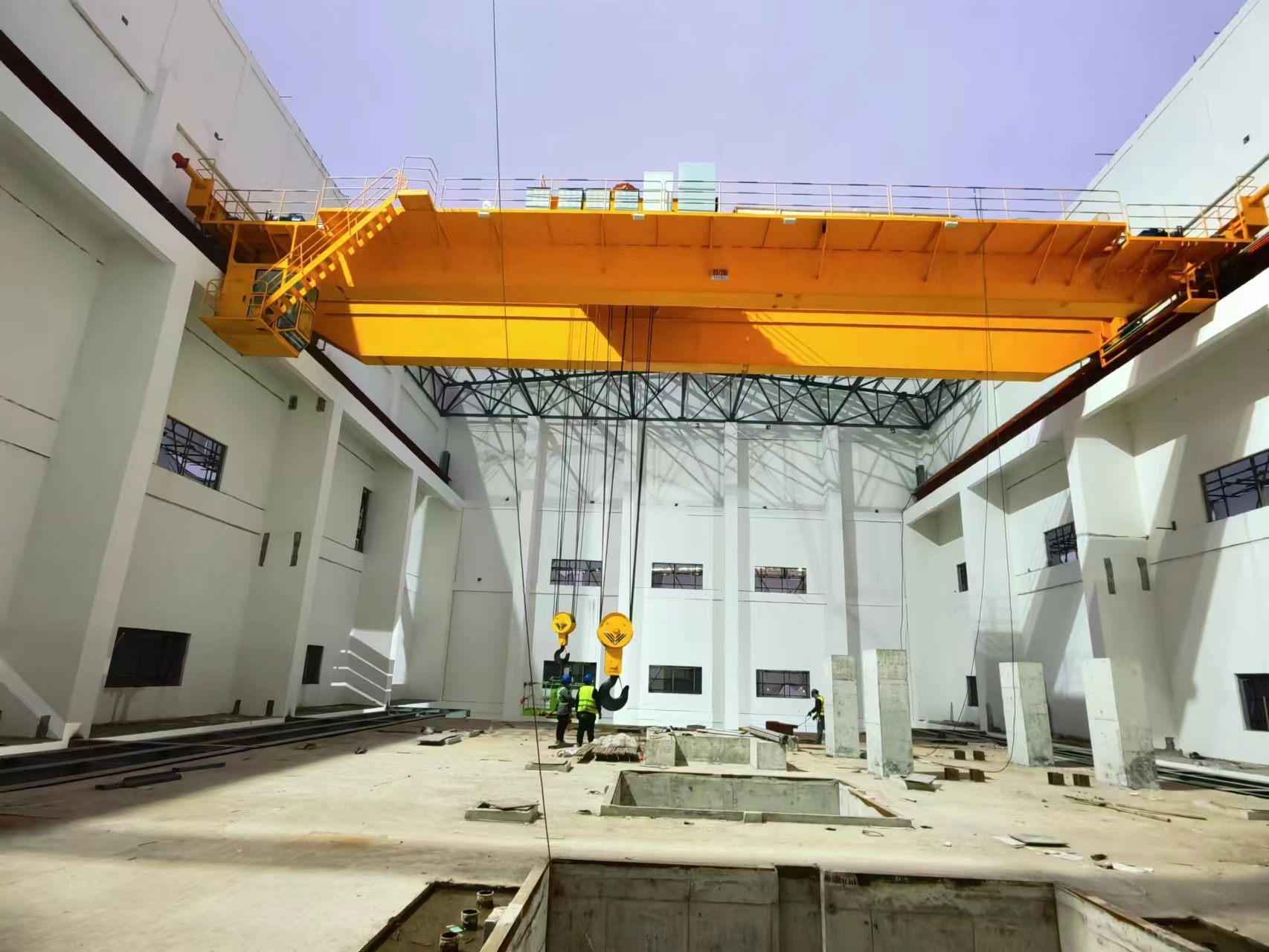

QE Double Girder Overhead Crane

QE Model double trolley overhead crane is suitable to lift long materials(wood, paper tube, pipe and bar) in workshops or outdoors to store in factory and mines. The two trolley could work separately and at the same time. QE double girder overhead crane are mainly consists of Girder frame, Crane travelling device, two lifting trolley and electrical parts. Bridge adopts box welded structure, high degree of vertical and horizontal rigidity; crane travelling mechanism adopts separate drive. It has a strong beam and a stable travelling mechanism; the emergency switch can stop any movement once any dangerous happened. It is rely on the bridge frame along the workshop rail direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Advantage

Stablity

Performance

Customization

Perfect Service

Description

QE Model double trolley overhead crane is suitable to lift long materials(wood, paper tube, pipe and bar) in workshops or outdoors to store in factory and mines. The two trolley could work separately and at the same time. QE double girder overhead crane are mainly consists of Girder frame, Crane travelling device, two lifting trolley and electrical parts. Bridge adopts box welded structure, high degree of vertical and horizontal rigidity; crane travelling mechanism adopts separate drive. It has a strong beam and a stable travelling mechanism; the emergency switch can stop any movement once any dangerous happened. It is rely on the bridge frame along the workshop rail direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work. It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.


Feactures

Double welding box girder, beam deflection with DIN/FEM standard;

Trolley rail is made of high strength hot rolled flat steel (16 Mn);

The speed can be frequency inverter speed control;

Control method is cabin control or remote control;

Steel Material: Chinese standard Q235B and Q345B;

Both side of all the steel plate of crane are pretreatment by pretreatment production line,Sand blasting-- Primer spray--Primer

drying. Eliminate the innerstress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and

anticorrosion quality.



Applications

QE Type Double cart Hanger Bridge Crane Working Class A5~A6 is suitable to lift long materials(wood, paper tube, pipe and bar) in workshops or outdoors to store in factory and mines. The two trolley could work separately and at the same time.


Performance

Capacity   5t~200t

Span   10.5~31.5m

Working Duty:  A5~A6

Ambient Temperature: -20~40°C



Why choose Suitong?
  • Corporate Strength

    In SuiTong, our engineers will think for you, we will provide you with careful technical services, to provide reasonable solutions, we according to your requirements, detailed communication of customer working conditions for customers tailored solutions, to provide customers with careful technical services, to provide reasonable solutions.

  • High Quality

    High quality for your service, our product quality is high standard, strict quality control, years of production experience, product quality is guaranteed, cost-effective, many times won the honour of Henan advanced enterprise, famous brand products.

  • Sincere Cooperation

    After purchasing the equipment, we will arrange for professional crane installation staff to install it. This ensures the highest quality of installation. Later on, our staff will make a phone call to follow up with the user to ensure their satisfaction with the product. We value not only your business but also the relationship built on trust.

  • Higher Cost Performance

    We will never let low quality cranes reduce your production efficiency, we only sell high quality cranes, the price is reasonable, really worth it.
